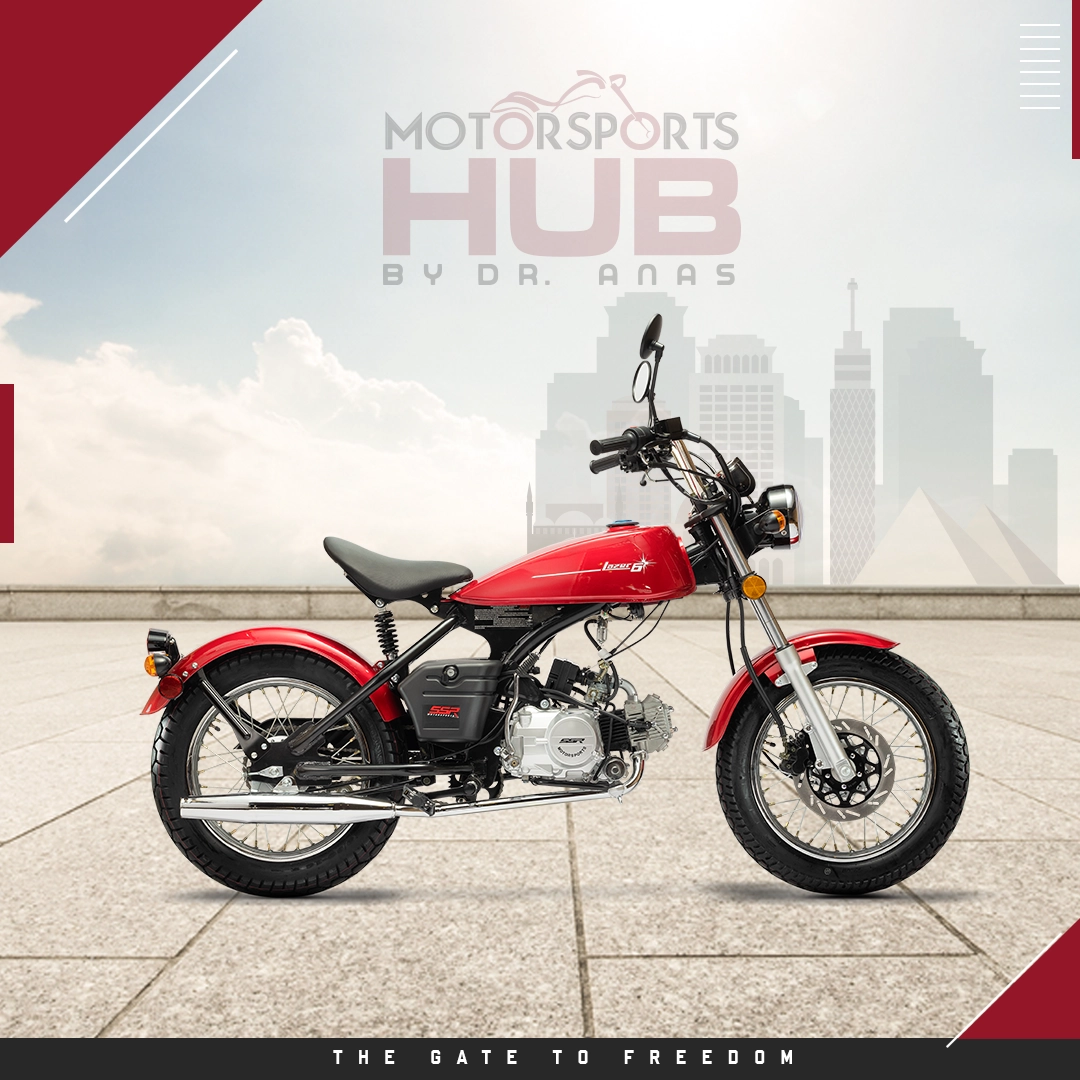

SSR Lazer 6

Description

SPECIFICATIONS		*

	ENGINE
	Engine Type	Single Cylinder, 4 Stroke, Air Cooled
	Displacement	49.4 cc
	Bore x Stroke	39 mm x 41.4 mm
	Compression Ratio	9.0 : 1
	Rated Output	2.8 hp @ 7,500 rpm
	Fuel Supply	Carburetor, 16 mm
	Ignition	CDI
	Starter	Electric / Kick
	Transmission	Automatic
	CHASSIS
	Front Suspension	Hydraulic / Spring
	Rear Suspension	Pre-load Adjustable Spring
	Front Brake	Disc
	Rear Brake	Drum
	Front Wheel / Tire	Steel / 3.50 – 16
	Rear Wheel / Tire	Steel / 110/90 – 16
	DIMENSIONS
	Wheelbase	52 inches
	Seat Height	31 inches
	Ground Clearance	8 inches
	Fuel Tank	1.85 gallons
	Weight	205 pounds
	Weight Capacity	165 pounds
	L x W x H	76.8 x 31.9 x 42.9 inches
	OTHER
	Colors	Red, Black, Silver
